Dana 30 High Pinion vs. Low Pinion: Which One Should You Run?

The Dana 30 front axle has been a staple in the Jeep world for decades. Found in everything from the XJ Cherokee to the TJ Wrangler and even some JKs, it’s a popular platform for off-road builds—especially those just getting started. But once you lift your rig, run larger tires, or start crawling over real rocks, the limitations of the Dana 30 become clear. One of the first questions people ask when upgrading is: Should I go with a Dana 30 high pinion or low pinion?

This guide breaks down the differences, pros, cons, and real-world use cases of Dana 30 high pinion vs. low pinion setups—so you can make the right choice for your Jeep or off-road rig.

What Is the Dana 30 Axle?

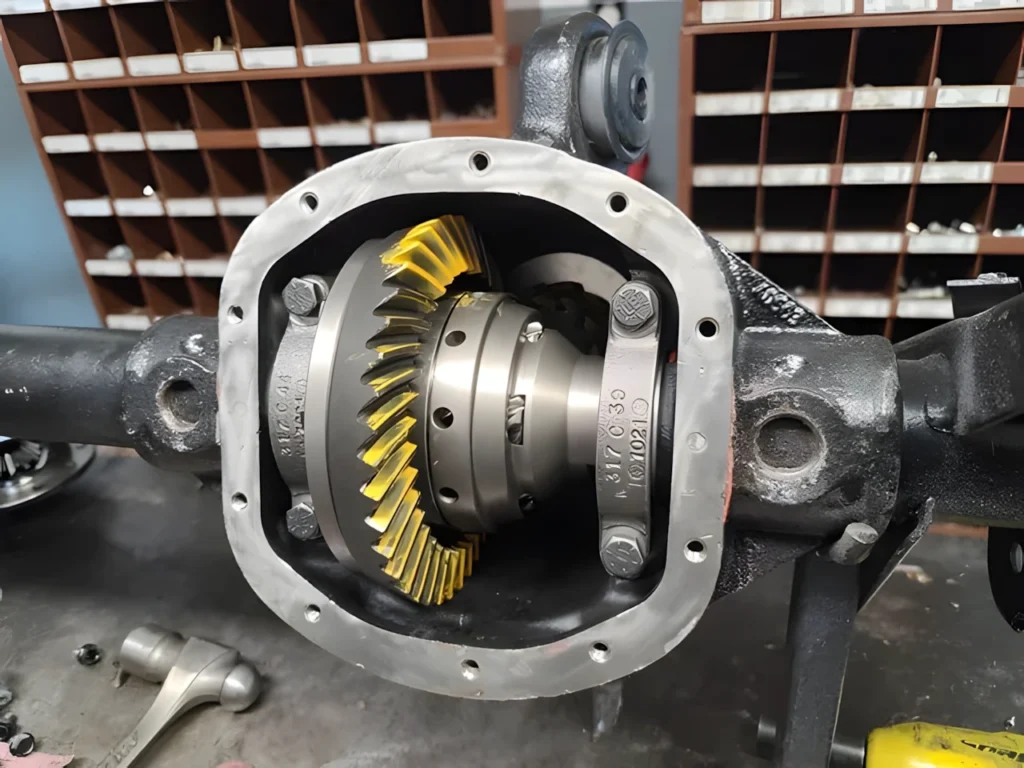

The Dana 30 is a solid front axle used in many Jeep models, prized for its lightweight design and aftermarket support. It’s not as beefy as the Dana 44, but it’s been trail-tested for years and is still widely used in moderate off-road builds.

There are two main versions of the Dana 30 front axle:

High Pinion (HP): The pinion gear sits above the axle centerline. These are reverse-cut gears designed to rotate in the opposite direction of a rear axle.
Low Pinion (LP): The pinion gear sits below the centerline. These are standard-cut gears, more common in later model Jeeps.

Key Tip: High pinion Dana 30s are mostly found in pre-2000 Jeep XJs and early TJs. Low pinion versions became standard in newer Wranglers (TJ post-2000, JK, etc.).

High Pinion vs. Low Pinion — Key Differences

When deciding between a Dana 30 high pinion (HP) and low pinion (LP), understanding the technical and functional differences is key. These differences go beyond just gear placement—they impact strength, durability, driveshaft angles, and your rig’s long-term reliability on and off the trail.

Feature	High Pinion Dana 30	Low Pinion Dana 30
Pinion Gear Position	Sits above the axle centerline	Sits below the axle centerline
Gear Cut Type	Reverse cut (also called "hypoid reverse")	Standard cut (hypoid standard)
Strength (Front Axle Use)	Stronger in front due to reverse cut design, which pushes against the stronger side of the ring gear	Weaker in front axle applications; standard-cut gears are not optimized for front-end stress
Driveshaft Angle	Shallower angles, which reduce stress on U-joints in lifted setups	Steeper angles, which can increase vibration and wear with suspension lift
Ground Clearance at Pinion	Slightly better—helps avoid rock strikes and impacts on trail	Slightly worse due to the lower pinion position
Factory Availability	Found in older Jeep XJs (Cherokee), early TJs, and some ZJs	Found in most Wranglers from 2000+ (TJ, JK, some JL trims)
Aftermarket Support	Strong support for gear upgrades, lockers, axle trusses, and reinforcement kits	Also supported, but fewer swap options into other Jeeps
Best Use Case	Ideal for off-road rigs with 33"–35"+ tires, lifted suspension, and aggressive trail use	Best for stock or lightly modified builds, daily drivers, or budget-conscious wheelers

Strength and Durability

The reverse-cut gear set in the high pinion Dana 30 is engineered to run on the stronger “drive side” of the gear teeth when installed in a front axle. That means better torque handling and reduced risk of gear failure during high-load situations like hill climbs or rock crawling. In contrast, a low pinion Dana 30 runs on the “coast side” under load, which is inherently weaker and more prone to wear when pushed hard.

Driveshaft Angles and Lift Compatibility

For lifted Jeeps, especially those with 3+ inches of suspension lift, driveshaft angle becomes a real issue. A high pinion setup improves those angles and helps maintain better driveline geometry, reducing U-joint strain and the chance of vibration at speed. Low pinion setups are more prone to driveline angles that lead to premature wear or require more aggressive solutions (like adjustable control arms or double cardan joints).

Trail Performance and Ground Clearance

While the difference isn’t massive, high pinion axles tuck the driveshaft up higher, offering marginally better clearance on rocky trails. When you’re dragging your front diff over boulders, that half-inch can make a difference. This is especially relevant for technical off-roading, where underbody protection and clearance are critical.

Bottom Line

If you’re building a Jeep or off-road rig that will see serious trail time, the Dana 30 high pinion is a smarter long-term move. It handles torque better, preserves driveshaft angles on lifted suspensions, and offers slightly improved ground clearance. A low pinion Dana 30 will still work for light wheeling and daily driving—but it’s not the best platform if you’re planning to push your rig harder in the future.

Should You Upgrade to a Dana 30 High Pinion?

If your build is headed toward moderate to heavy trail use—especially rock crawling or hill climbs—a high pinion Dana 30 is worth considering.

Advantages:

Reverse-cut gears are stronger when used in front axles, especially under load.
Improved driveshaft angles help reduce vibration and stress in lifted Jeeps.
Slightly more ground clearance helps avoid hang-ups on the trail.

However, if you already have a low pinion Dana 30 (like in many JKs), the cost and time to source and install a high pinion version may push you toward a full Dana 44 upgrade instead. If you’re planning to run tires over 35”, this is often the smarter long-term move.

Pro Tip: For rigs on 33s or 35s doing mild-to-moderate wheeling, a high pinion Dana 30 with good gears and a locker is a solid middle-ground solution.

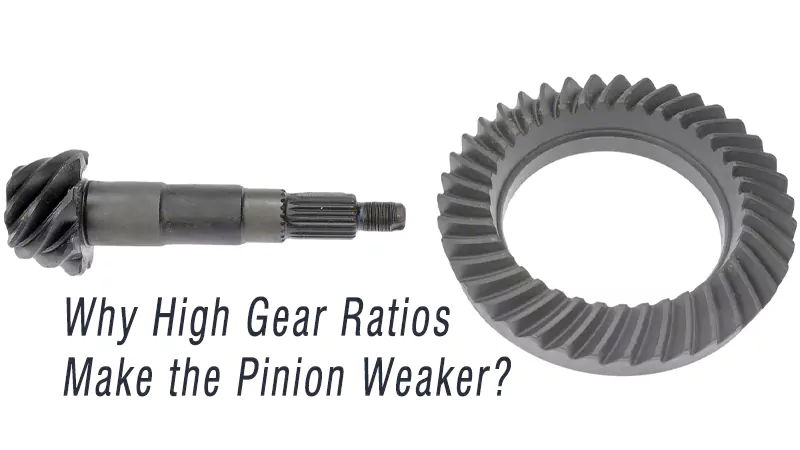

Dana 30 Gear Ratio and Differential Considerations

When upgrading your axle—or swapping in a Dana 30 high pinion—you’ll need to match your gear ratio to your rear axle. Common upgrades include 4.10, 4.56, or even 4.88 ratios depending on tire size and engine power.

Differentials to consider:

ARB Air Locker – Selectable locker, great for trail and street use.
Eaton E-Locker – Electrically actuated, no airlines required.
Detroit Truetrac – Gear-driven LSD, good for daily drivers with weekend trail use.

Make sure your new axle supports your choice of carrier or locker, especially if switching between 27-spline and 30-spline shafts.

Conclusion

Choosing between a high pinion and low pinion Dana 30 comes down to your driving style, terrain, and future upgrade plans. For lifted Jeeps hitting moderate to hard trails, the Dana 30 high pinion offers real advantages in strength and geometry. But for daily-driven rigs or those on a budget, a well-built low pinion Dana 30 can still do the job—especially with upgraded internals.

If you’re building with the long game in mind, starting with the right axle saves time, money, and frustration down the road. Know your terrain, build for your goals, and enjoy the drive.
