When it comes to understanding automotive mechanics, crown pinion calculations are crucial. These calculations help determine the final drive ratio of a vehicle, which directly affects its performance and efficiency. This article will delve into the details of crown pinion calculations, explaining their importance and practical application.

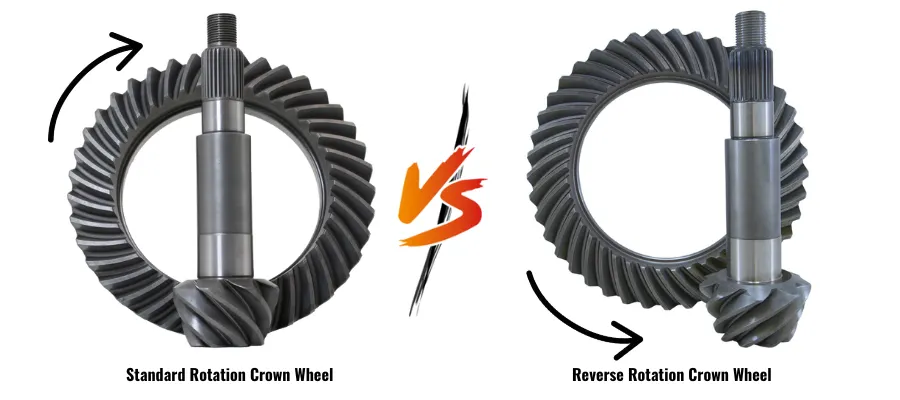

Crown and pinion gears are integral components of a vehicle’s differential. The crown wheel, or ring gear, meshes with the pinion gear to transfer power from the driveshaft to the wheels. The number of teeth on each gear is vital for calculating the gear ratio, which influences how power is distributed and how the vehicle performs.
Key Parameters in Crown Pinion Calculations
- Gear Ratio Calculation
The gear ratio is the core of crown pinion calculations. It’s determined by dividing the number of teeth on the crown wheel by the number of teeth on the pinion gear.
Gear Ratio=
Number of Teeth on Pinion Gear/
Number of Teeth on Crown Wheel
If a crown wheel has 43 teeth and a pinion has 10 teeth, the gear ratio would be: 43/10=4.3:1
- Impact of Gear Ratio on Vehicle Performance
The gear ratio determines how many revolutions the wheels make for every revolution of the pinion gear. A higher gear ratio (e.g., 4.3:1) means more torque but lower speed, suitable for heavy-duty tasks like towing. Conversely, a lower gear ratio (e.g., 2.92:1) provides higher speed but less torque, ideal for high-speed driving.
